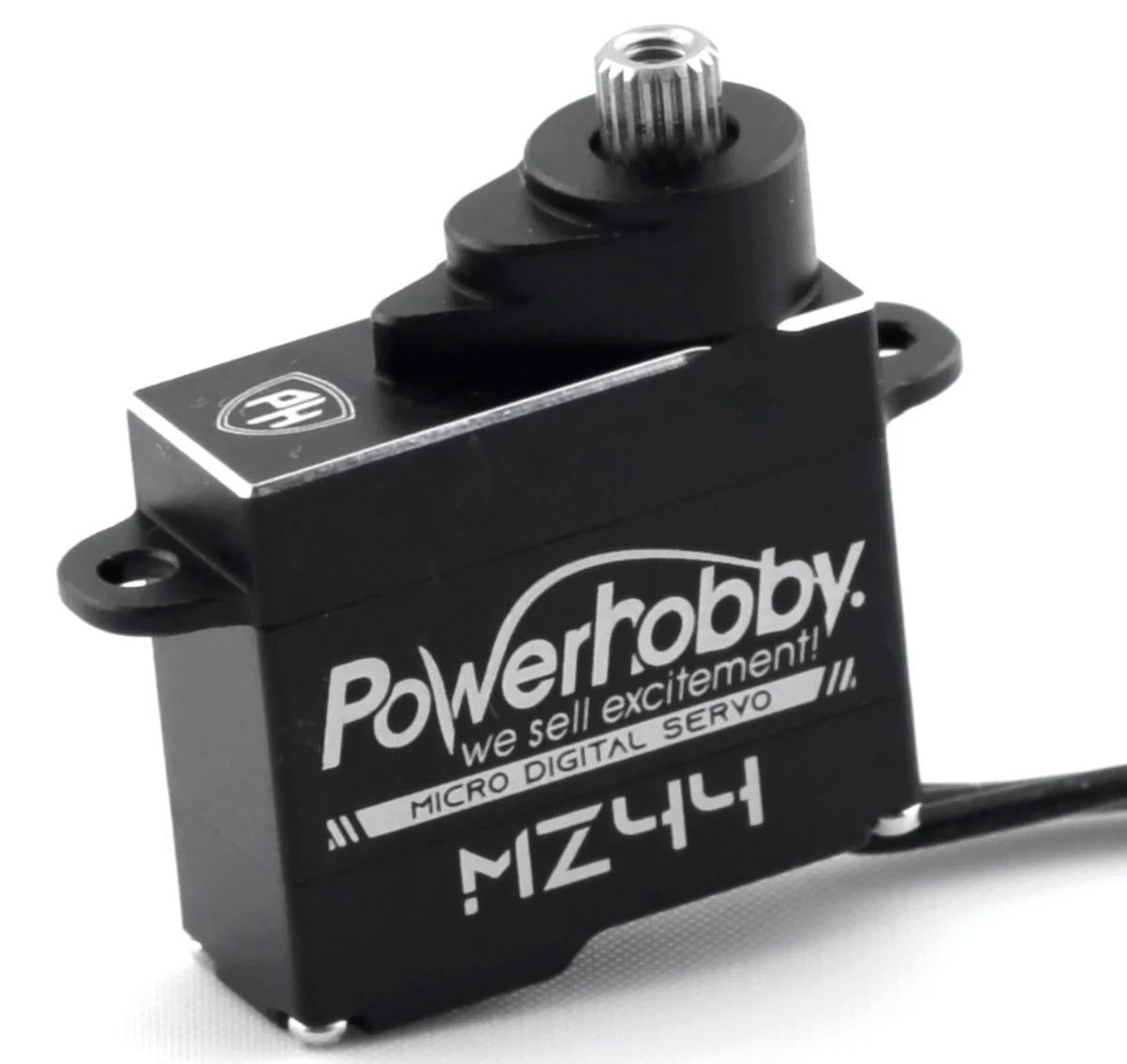

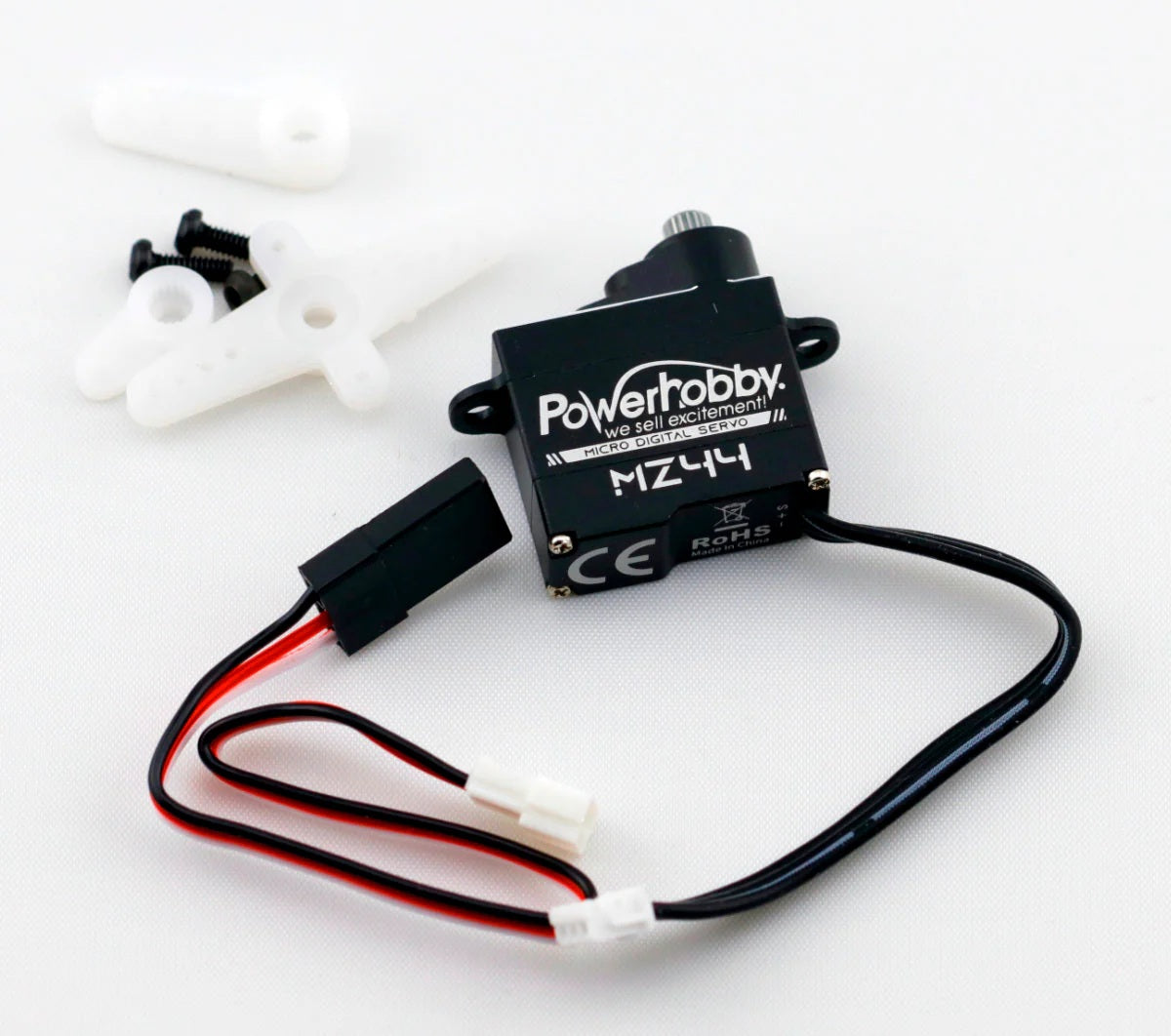

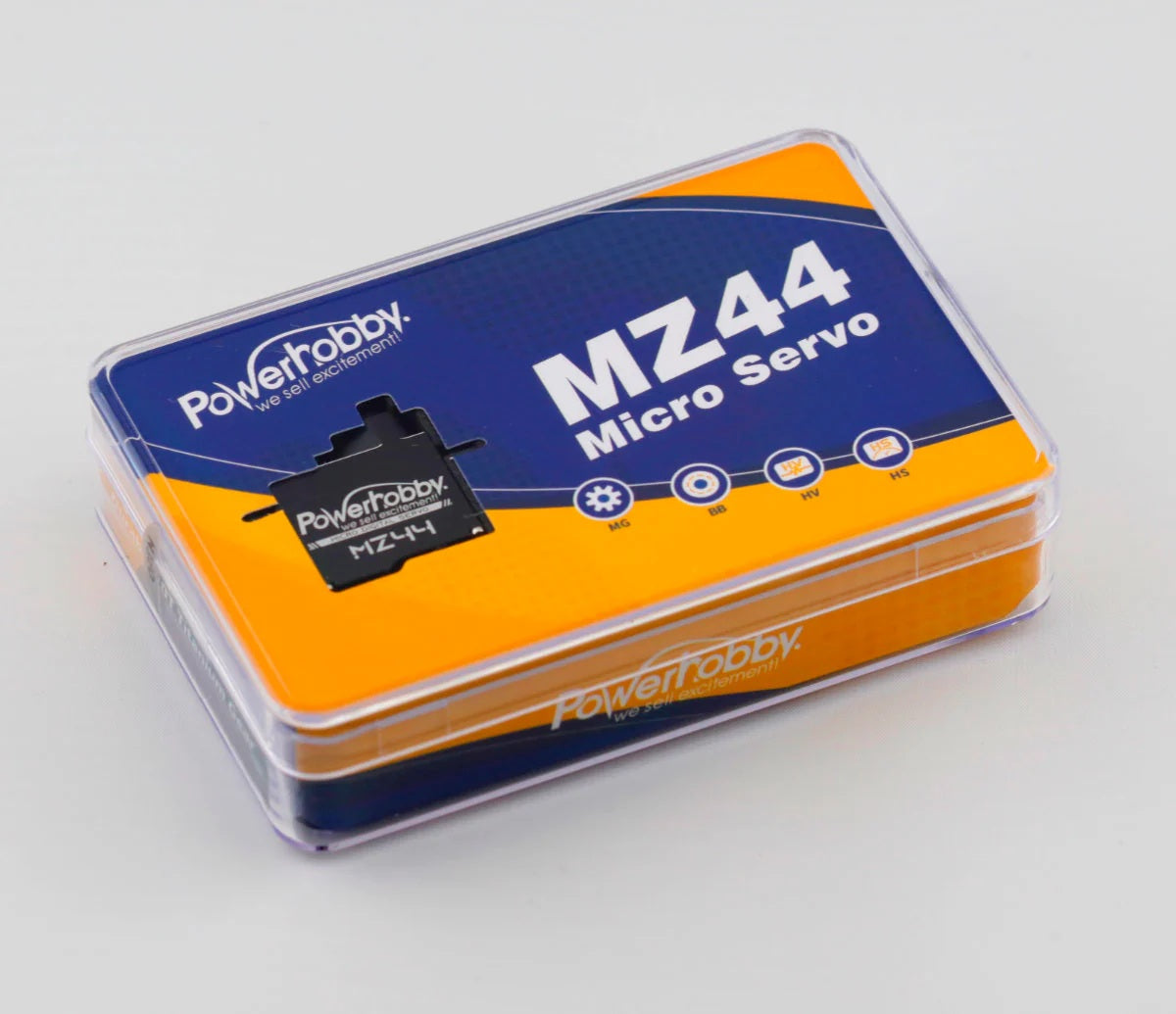

MZ44 MINI Z MICRO SERVO

MZ44 Programmable High Speed / Torque Digital Servo Mini-Z RWD

Features:

• High Performance
• Digital Servo
• High Precision Titanium Gear
• High Quality Coreless Motor
• Fast Cooling Aluminum Case
• Programmable Digital Circuit For Parameter Adjustment
• Ideal for Mini-Z RWD
• 2S 8.4V High Voltage Compatibility
• Specifications:
  • Operating Voltage: 4.8-8.4V
  • Operating Speed: 0.075sec/60 @ 4.8V
  • Operating Speed: 0.066sec/60 @ 6.0V
  • Operating Speed: 0.058sec/60 @ 7.4V
  • Operating Speed: 0.052sec/60 @ 8.4V
  • Stall Torque: 1.8 kg-cm (25 oz-in) @ 4.8V
  • Stall Torque: 2.2 kg-cm (30 oz-in) @ 6.0V
  • Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V
• Operating Voltage: 4.8-8.4V
• Operating Speed: 0.075sec/60 @ 4.8V
• Operating Speed: 0.066sec/60 @ 6.0V
• Operating Speed: 0.058sec/60 @ 7.4V
• Operating Speed: 0.052sec/60 @ 8.4V
• Stall Torque: 1.8 kg-cm (25 oz-in) @ 4.8V
• Stall Torque: 2.2 kg-cm (30 oz-in) @ 6.0V
• Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V
