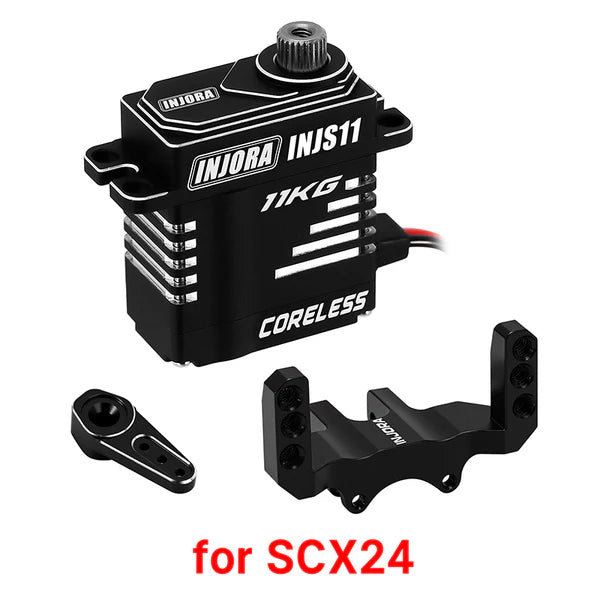

INJORA 11KG Coreless High Torque Micro Servo for 1/24 SCX24 AX24 (INJS11)

INJORA Coreless Metal Gear High Torque Digital Micro Servo for 1/24 SCX24 (INJS11)(High Voltage)
Note:

• Not compatible with stock servo tray and horn. This servo requires a special servo tray and horn!
• Not waterproof, do not drive in the rain or underwater!
• Not compatible with the SCX24 stock chassis, as the servo may interfere with the frame.

Compatible with: 1/24 RC crawler Axial SCX24 and Axial AX24
Features:

• Coreless and quick response
• High torque, incredible efficiency
• CNC machined aluminium case

Servo Specifications:

• Part Number: INJS11
• Operating Voltage: 6V-8.4V
• Torque(6V): 8kg-cm/111oz-in
• Speed(6V): 0.106"/60°
• Torque(7.4V): 9.5kg-cm/132oz-in
• Speed(7.4V): 0.085"/60°
• Torque(8.4V): 11kg-cm/153oz-in
• Speed(8.4V): 0.074"/60°
• RC Angle: 90°±5°
• 500-2500μs Angle: 180°± 5°
• Motor: Coreless
• Gears: Stainless Steel
• Spline: Φ4.9 Mini 25T
• Bearing: 2BB
• Size: 32*12*27mm
• Weight: 21g/0.74oz

Brass Servo Mount Specifications:

• Part Number: SCX24-192BR
• Material: Brass
• Weight: 9.9g
