Reef's RC RAW 400 LP Black Ful
Regular price
$139.99
Unit price
Reef's RC RAW 400 LP Black Ful is backordered and will ship as soon as it is back in stock.

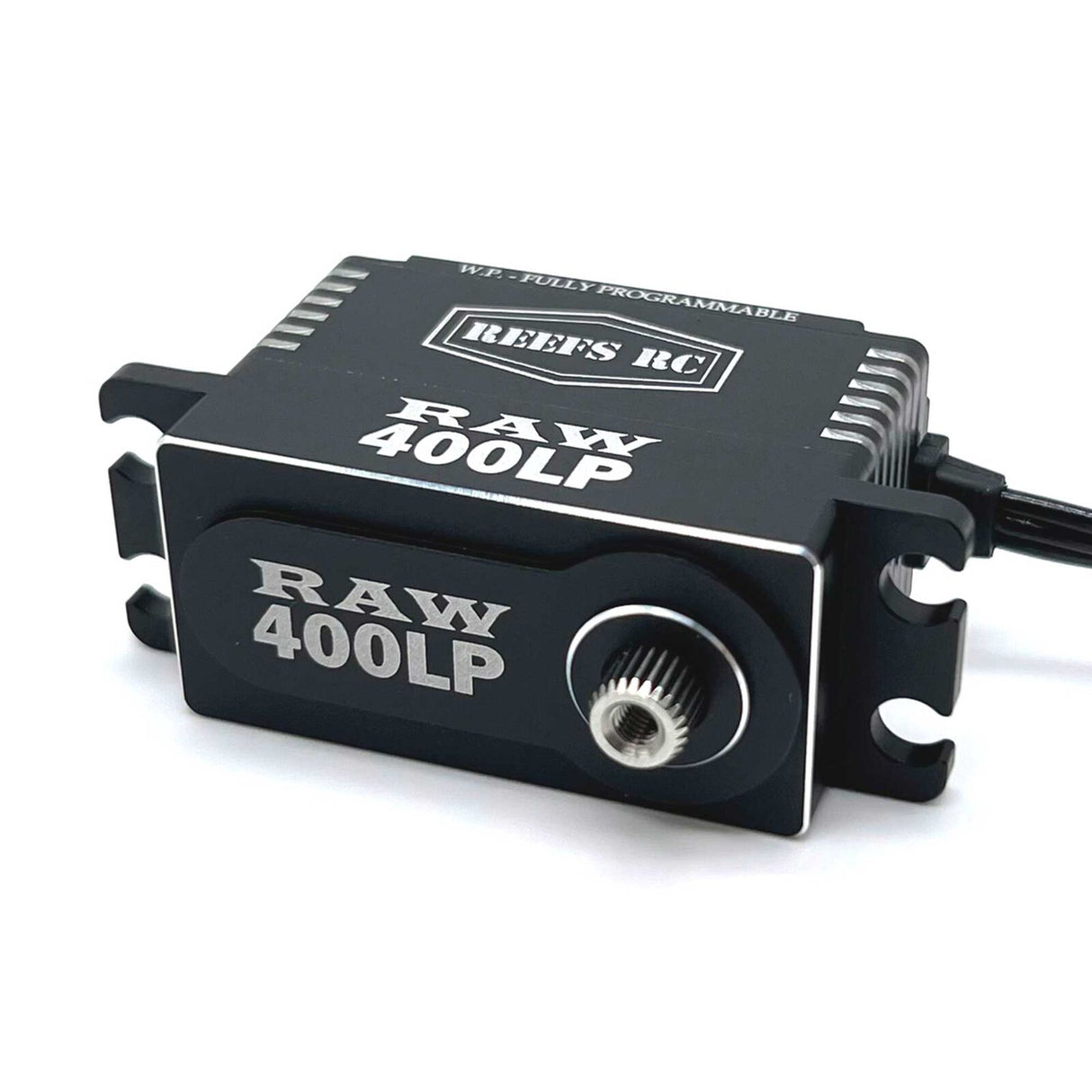

RAW 400LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Black Features
- FULLY PROGRAMMABLE
- High Torque High Speed
- Brushless Low Pro Servo
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Voltage 4.8V - 8.4V
- REEFS LINK required for Programming (Optional)
- Internal: Steel Gears
- CNC Aluminum Casing
- Bearing Type: 2 Ball Bearings
- Weight: 2.3oz
- Dimension: 1.6" x 0.79" x 1.16" (LWH)
- Torque: 350oz @ 6v/ 420oz @7.4v/ 460oz @8.4v
- Speed: .09sec @6v/.08sec @7.4v/.065sec @8.4v
- Spline: 25T / Dead Band Width: 2μs
- BEC not required, but recommended for max performance
RAW 400LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Black Product Specs
- Application1/10 - 1/8 Cars, Trucks
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Deadband2µs
- Maximum Servo Speed0.09 sec/60 deg @ 6.0V, 0.08 sec/60 deg @ 7.4V, 0.065 sec/60 deg @ 8.4V
- Maximum Servo Torque350oz/in @ 6.0V, 420oz/in @ 7.4V, 460oz/in @ 8.4V
- Product Height1.16" (29 mm)
- Product Length1.6" (41 mm)
- Product Weight2.3oz (65g)
- Product Width0.79" (20 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 - 8.4V (HV)
- Servo Size CategoryLow Profile
- Servo TypeDigital
- Spline Count25 - Tooth
- Water-ResistantYes
