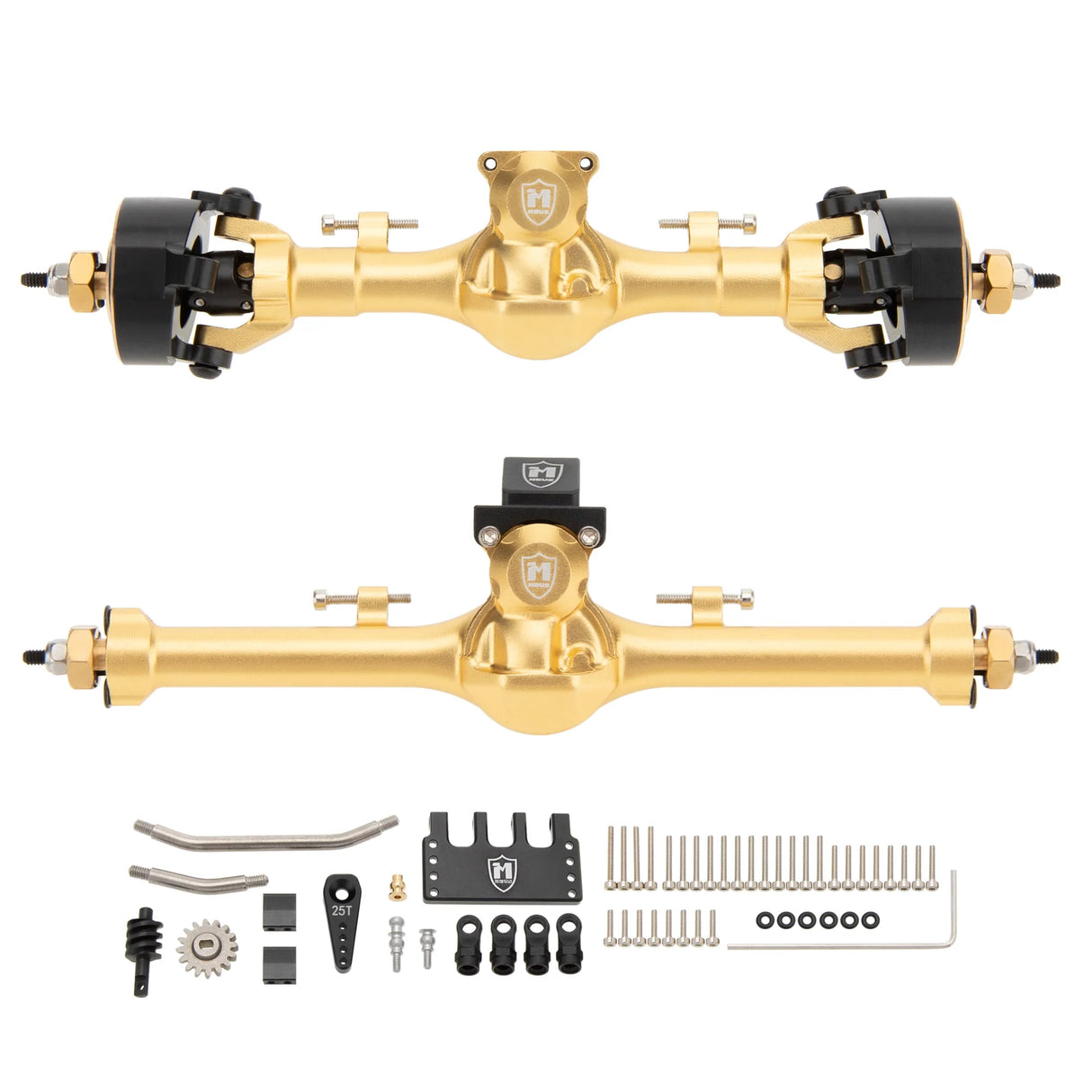

MEUS Racing SCX24 Metal V3 Isokinetic Axles +9MM with 3-Section CVD for Axial 1/24 SCX24 GOLD

• 1. The front and rear axles are +9mm wider on both sides; the entire axle was widened by 18mm.
• 2. ISO V3 updates: The new differential design performs better on rocks and won't get stuck easily.
• 3. The spherical design differential shell and axle housing are made of aluminum alloy with an anodized surface. The front axle is 77g, and the rear axle is 30g.
• 4. The front axle comes with brass steering knuckles and a diff cover to increase the weight on the front axle to improve traction, climbing ability, and steering response.
• 5. The rear axle comes with a nylon slide diff cover. It can reduce the rear axle's weight, helping it slide over rocks a bit more easily.
• 6. US patented (Patent No.: US D1,052,393 S) Isokinetic 3-section CVD effectively minimizes the jerks when turning at large angles and supports a max. 52° steering angle.
• 7. Front axle equipped with customized thickened 2-14T gears, and the rear axle equipped with a conventional 2-14T gear.
• 8. The rear axle comes with 2-16T gears to get underdrive to increase front wheel speed and prevent the buggy from rolling over when climbing.
• 9. If you want the front wheels to overdrive, please change the differential gear of the front axle to our customized thickened 2-12T.
• 10. V3 upgraded version of MEUS Racing SCX24 Isokinetic axles, suitable for Axial 1/24 RC crawler, Axial SCX24 Deadbolt C10 JLU Gladiator Bronco.

Specifications:

• Axle housing material: Aluminum Alloy
• Steering knuckle material: Brass
• Front axle diff cover material: Brass
• Rear axle slider diff cover: Nylon
• Servo mount material: Aluminum Alloy
• Front axle weight: 77g
• Rear axle weight: 30g
• Steering knuckle bearing size: 3×6×2.5mm

Package List:

• 1 × SCX24 Metal V3 Isokinetic front axle
• 1 × SCX24 Metal V3 rear axle
• 1 × Steering Links
• 1 × 2-16T rear axle underdrive diff gear
• 1 × Servo Mount
• 1 × Screws set and screw tool
• 1 × Rubber O-rings
