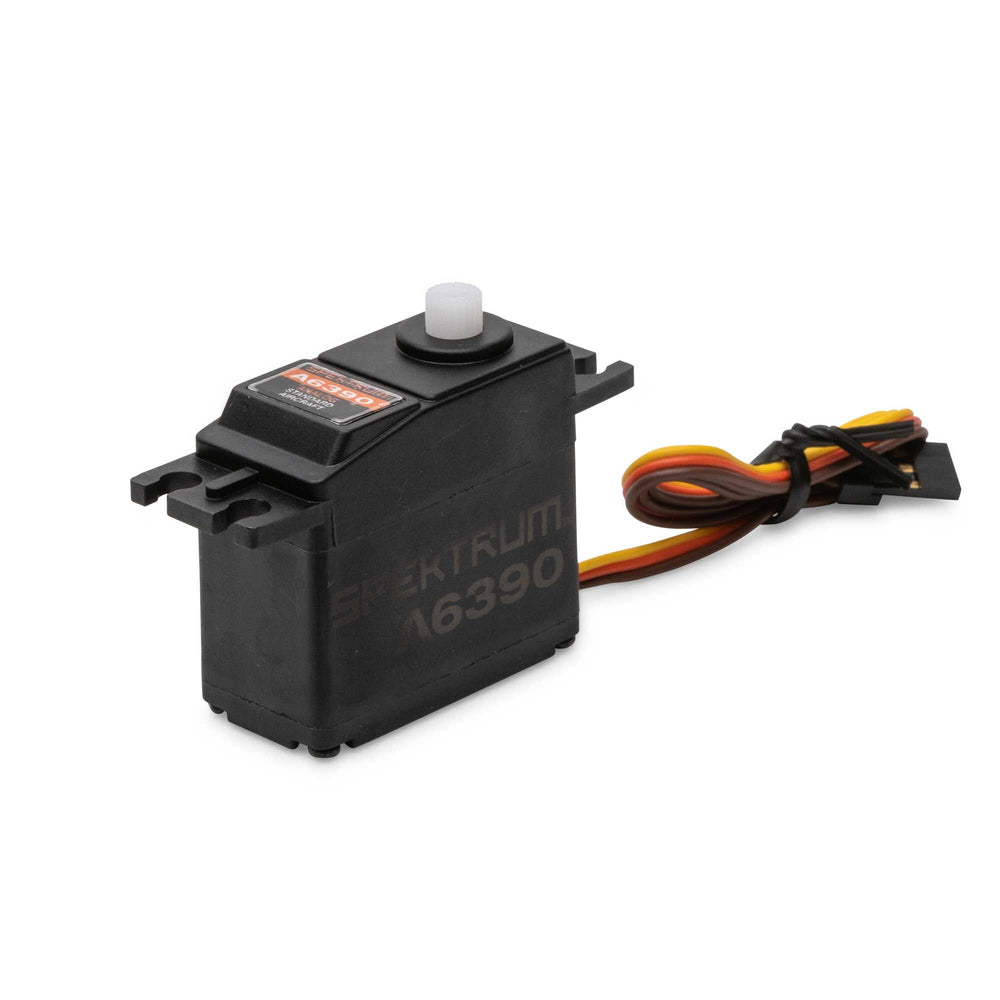

SPEKTRUM A6390 MID-TORQUE
SPEKTRUM A6390 MID-TORQUE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
SPEKTRUM A6390 MID-TORQUE
Images may differ from actual product.
Overview
The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
Specifications
- Application
- Air
- Bearing
- Single
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Connector Wire Length
- 12" (305 mm)
- Deadband
- 3µs
- Gear Type
- Nylon
- Input Voltage
- 4.8V to 6.0V
- Material
- Plastic
- Maximum Servo Speed
- 0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V
- Maximum Servo Torque
- 48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V
- Product Application
- Air
- Product Height
- 1.36" (35 mm)
- Product Length
- 1.52" (39 mm)
- Product Weight
- 1.3oz (37g)
- Product Width
- 0.74" (19 mm)
- Programmable
- No
- Rotation Range
- 120 deg
- Servo Operating Voltage
- 4.8 - 6.0V
- Servo Size Category
- Standard
- Servo Type
- Analog
- Spline Count
- 23 - Tooth
- Water-Resistant
- No
- Wire Gauge
- 22 AWG
